MULTIPLE CHANNEL LINEAR

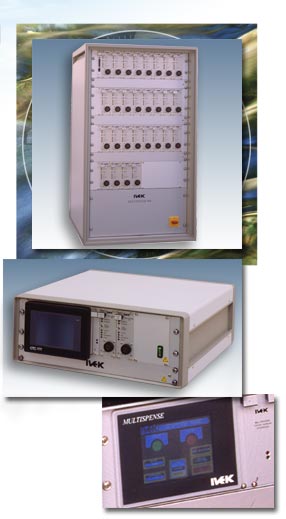

Multispense 2000
Controller Module
The Multispense 2000 Controller Module is a multi-channel controller that drives a patented Linear Actuator Module connected to a ceramic Pump Module providing linear flow control. The controller is designed with Eurocard (modular) circuit boards. All dispensing and metering parameters are set through a computer interface (RS232) or Touchscreen. A computer or the Touchscreen gives the user control over all standard fluid metering operations. Optional individual channel control permits the user to operate only the channels designated. A microstep version of the RS-232 Multispense 2000 Controller Module provides 5X resolution in the steps per stroke.

Features:

• Single controller with single or multiple channel capability
• Retains high reliability, accuracy and low maintenance attributes
• Engineered for integration with other production equipment
• All channels linked through central logic
• Modular circuit boards for easy access
• Individual Channel Disable
• Individual Channel Trigger Input and Ready/Fault Output (optional)
• PLC interface
• Totalizing of Cycles/Dispenses
• Prime, Meter and Dispense Modes
• Pump Forward and Reverse Modes
• Pump Drawback Mode
• Trigger and Drawback Dwell Adjustments
• RS232 Interface or Membrane Touchscreen Interface
• 25 configuration default memory (Touchscreen Only)
• Three levels of password protection (Touchscreen Only)
• Allows Five-Fold increase in resolution (Microstep version)
• 2000 steps per stroke (10,000 with Microstep version)
• Microprocessor based
• CE Certificate available

This controller is used with the following modules:

• Linear Actuator Module
• Micro Linear Pump Module
• Macro Linear Pump Module
