SINGLE CHANNEL DISPENSING SYSTEMS

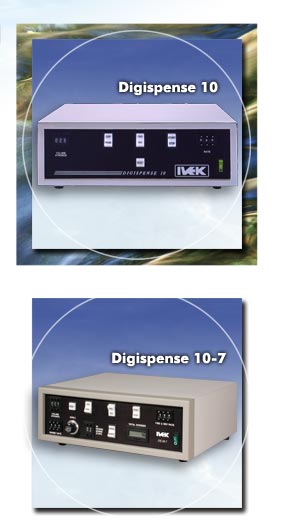

Digispense 10 Controller Module
The Digispense 10 Controller Module is a component in a rotary liquid dispensing system consisting of Controller, Motor/Base, and Pump Modules. This single channel bench top controller is most often used where high-speed filling or dosing is required. This controller drives a 23 or 34 frame brushless DC motor. The controller can be triggered manually and interfaced with PLC and computer (RS-232) systems.
Features:
- PLC Interface Options - 24 Volt standard
- Volume Stroke Selector
- Rate Adjustments to 2400 r.p.m.
- Forward/Reverse Switch
- Dispense/Prime Switch
- Footswitch, Auto/Dwell/Trigger options
- Computer Interface option – RS232
- NEMA 4X enclosure option
- Continuous cycle mode
- CE Certificate available
|
This Controller Module used with the following modules:
Digispense 10-7 Controller Module
The Digispense 10-7 Controller Module is a component in a rotary liquid dispensing system consisting of Controller, Motor/Base, and Pump Modules. This single channel bench top controller is most often used where high-speed filling or dosing is required. This controller drives a 23 or 34 frame brushless DC motor. The controller can be triggered manually and interfaced with PLC and computer (RS-232) systems. The 10-7’s drawback feature reverses the motor direction at the end of the dispense cycle, effectively separating viscous fluids from the dispense tip.
Features:
- Normal Drawback Switch
- Drawback Pushwheel (2 – digit, 30( Increments)
- Drawback Rate Selector
- Drawback Dwell available
- PLC Interface Options - 24 Volt standard
- Volume Stroke Selector
- Rate Adjustments to 2400 r.p.m.
- Forward/Reverse Switch
- Dispense/Prime Switch
- Footswitch, Auto/Dwell/Trigger options
- NEMA 4X enclosure option
- Continuous cycle mode
- CE Certificate available
This Controller Module used with the following modules:
|
