MOTOR BASES

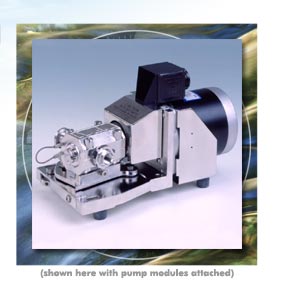

Heavy Duty Motor/Base Module
The Heavy Duty Motor/Base Module is comprised of a motor to drive the Split Case (macro rotary) Pump Module, the base to support the displacement adjustment mechanism and a connector to interface with a Single Channel Rotary Controller or Multiple Channel Rotary Controller. Each motor is specifically chosen to optimize the speed and torque appropriate for each application. The Base assembly attached to the motor is 316 stainless steel and includes a displacement adjustment mechanism that can be locked in place once set. A unique feature in the design of the adjustment mechanism permits Split Case Pump Module removal and replacement without altering the calibrated setting. An optional Dial Indicator can be mounted on each base assembly for fine measurement of setting. The Motor/Base module is available in single-ended (driving one pump) and dual-ended (driving two pumps) versions.

Features:

• 316 stainless steel swing plate for displacement adjustment
• Capable of locking to a fixed displacement
• Rugged, production worthy design
• 34 frame stepper motor standard (1,2,3 stack available)
• Fluidically optimized acceleration and deceleration
• High speed motors available
• Non-sparking – no brushes or commutators
• Dial Indicator Calibration Gauge, optional
• Built in mounting holes
• Interchangeable pump modules
• Swing plate allows easy Split Case Pump Module removal
• Fluidic Pulse Dampener option available
• CE certificate available

This Motor/Base Module used with the following modules:

• Digispense 10 Controller
• Digispense 10-7 Controller
• Digispense 700 Controller
• Digispense 800 Controller
• Digifeeder Controller
• Maintainer Controller
• OX Controller
• Replenisher Controller
• Multiple Channel Rotary Controller
• Split Case (Macro Rotary) Pump Module

Features:

• Full displacement prime position (manual or automatic)
• Volumetric setting infinitely adjustable across displacement range
• Capable of locking to a fixed displacement
• Rugged, compact and lightweight design
• 23 frame rare earth stepper motor standard
• Built in mounting holes
• Interchangeable pump modules
• Adjustable fluidic acceleration
• Panel Mount configuration available
• High speed motors available
• Non-sparking – no brushes or commutators
• CE certificate available

This Motor/Base Module used with the following modules:

• Digispense 10 Controller
• Digispense 10-7 Controller
• Digispense 700 Controller
• Digispense 800 Controller
• Digifeeder Controller
• Maintainer Controller
• OX Controller
• Replenisher Controller
• Multiple Channel Rotary Controller
• Micro Rotary Pump Module
