SINGLE CHANNEL DISPENSING SYSTEMS

Digispense 3009

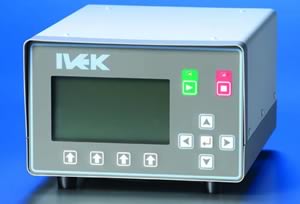

Controller Module
A high precision liquid dispensing system, the Digispense 3009 consists of an electronic controller module operating a stepper motor that can drive one or two precision, ceramic, rotary/reciprocating, liquid dispensing pump modules. The Digispense 3009 system operates all IVEK 23 and 34 frame stepper motor/base/pump modules designed to handle discrete dosing from 0.1µl and higher.

IVEK's Digispense 3009 system is designed for flexibility in system integration. 24V PLC, RS232 interfaces and contact closure trigger are standard features. A non-volatile memory allows storage of 32 parameter configurations. The system is compact in design and requires no line voltage selection. All these features make the Digispense 3009 the most versatile precision single-channel dispensing system available.

Features

• Dispense and meter operating modes.
• Rate controllable from 18 to 1,500 rpm
• Volume selection to 10,000 strokes per dispense trigger
• Acceleration profile
• Medium or high torque motor type
• Prime mode
• Forward/reverse modes
• Torque selection
• Non-volatile memory (NRAM) for storage of parameters and up to 32 recipes
• Incremental drawback and selectable stopping position for high viscosity fluids
• Password-protected permission levels assure no unwanted parameter changes
• Transferable from bench top use to full system integration/automation
• 24V PLC interface
• RS232 interface
• Contact closure trigger
• CD certified with 1 year warranty

Typical Applications

• Spray coating medical fluids
• Electrolyte dispensing for batteries
• Contact lens applications
• Silicone atomizing
• Cyanoacrylates
• Reagent dispensing
• Transdermal drug dispensing
• Pharmaceutical fluid dosing
• Flavor, essence and liquid vitamin additions
• Lubricants and UV adhesives

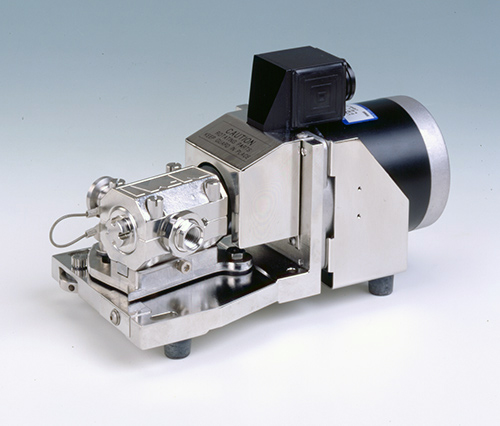

Ceramic Pump Modules

• Sapphire-hard 99.8% Alumina [Al₂0₃] or highly polished YTZP Zirconia piston/cylinder sets
• Piston Sizes:
  • 3A [maximum 27µl/stroke capacity]
  • 2A [maximum 54µl/stroke capacity]
  • A [maximum 109µl/stroke capacity]
  • B [maximum 295µl/stroke capacity]
  • C [maximum 739µl/stroke capacity]
  • D [maximum 1478µl/stroke capacity]
  • 16mm [maximum 1886µl/stroke capacity]
